Scheu Dental · Pressure thermoforming units
Precise thermoforming, from individual splints to aligner production

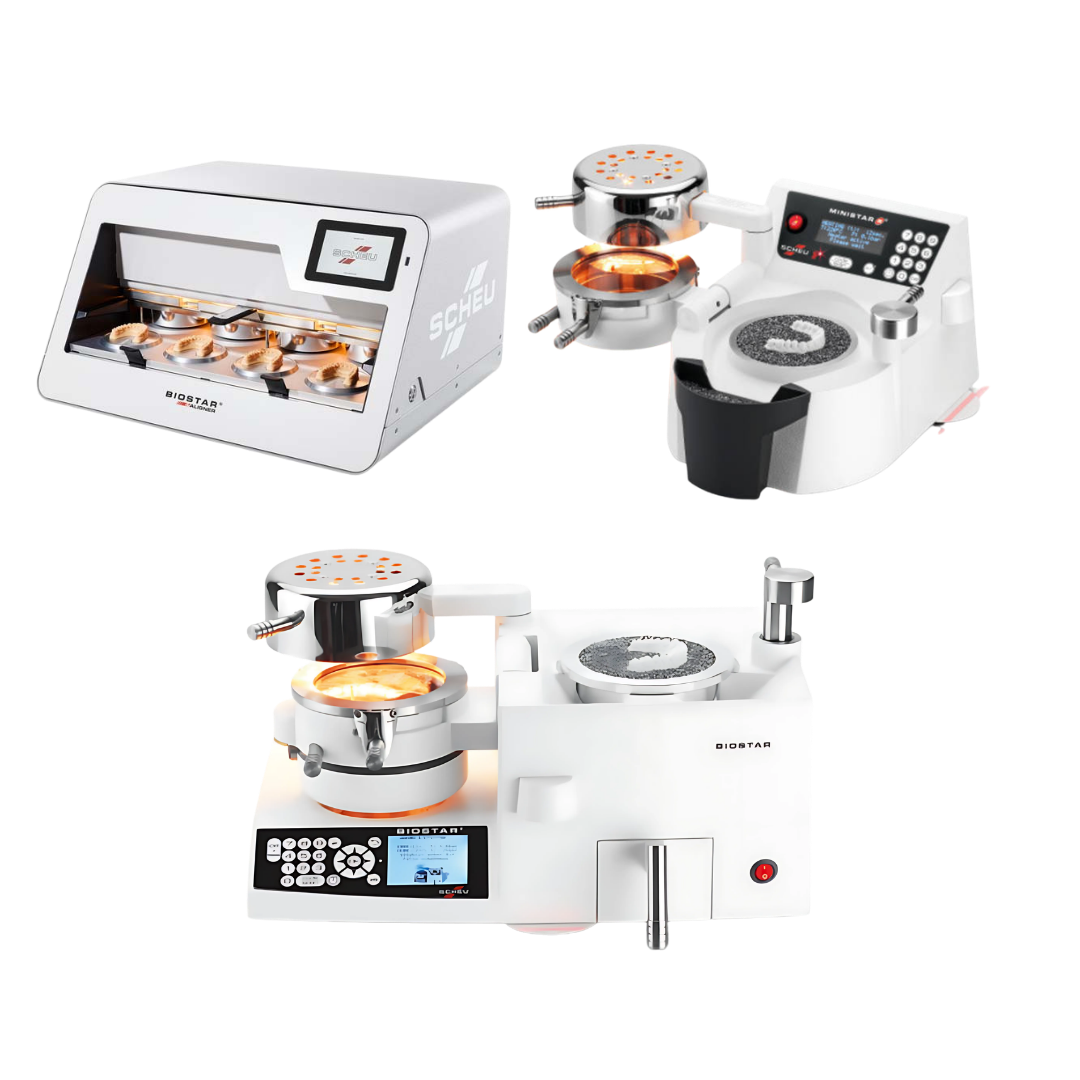

Ministar S, Biostar and Biostar 4-Aligner: units with barcode scanning that automatically program the temperature and the heating and cooling times for every Scheu Dental foil.
- ✓ Programming by scanning the barcode on the foil
Which unit fits your workload
Specifications as published by Scheu Dental. Details for each unit are below.
| Unit | Working pressure | Capacity | Power | Dimensions (W×H×D) | Weight |
|---|---|---|---|---|---|
| Ministar S | 0.5–4.0 bar | 1 foil | 750 W | 500×210×400 mm | 9 kg |
| Biostar | 0.5–6 bar; materials up to 5 mm | 1 foil; can embed models mounted in an articulator | 750 W | 520×240×440 mm | 14 kg |
| Biostar 4-Aligner | 4 bar, in separate pressure chambers | Up to 4 aligners at once, up to 120 aligners per hour | 1450 W | 612×337×524 mm | 50 kg |
Scheu Dental · Compact unit

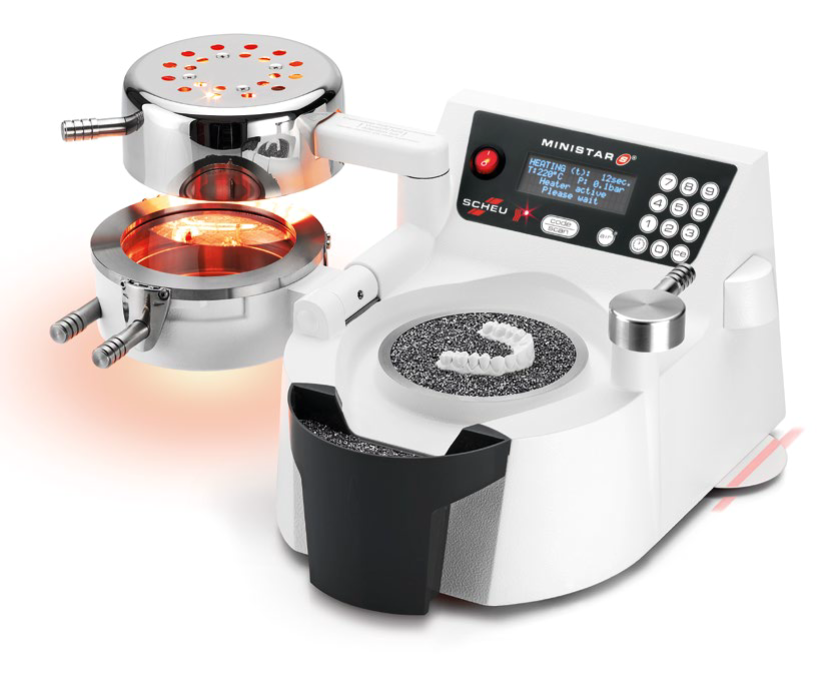

Ministar S
Compact pressure thermoforming, in record time.
Ministar S is a pressure thermoforming unit with scanning technology. The scanner reads the code on the foil and automatically programs the heating time, temperature and cooling time. The fast, patented heater and 4.0 bar working pressure can adapt any foil thickness.
- Working temperature reached in 1 second
- Patented infrared heater
- Scanning function with instant programming
- Large, clear display, with acoustic and visual guidance for the operator
- Parameters can also be entered manually
How to work with Ministar S
Five steps, from fixing the model to removing the thermoformed piece.

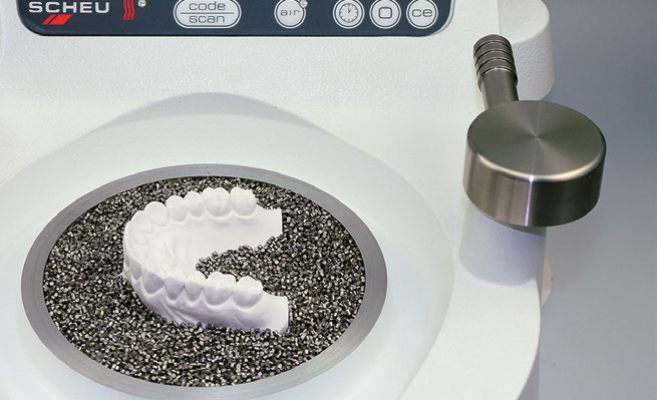

Place the model on the platform or embed it in pellets, and secure the material with the locking ring.
The material parameters are registered by the scanning technology.

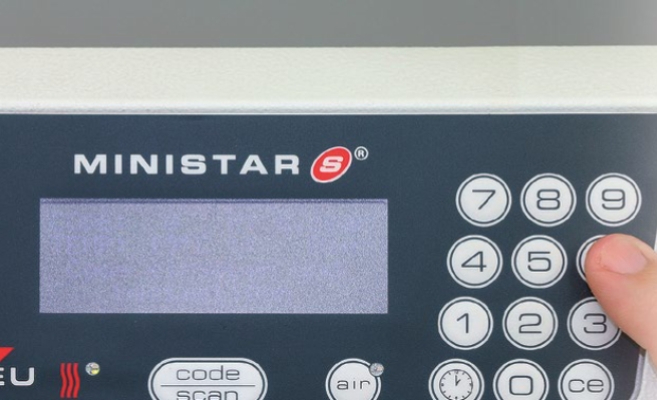

Parameters can also be entered manually.

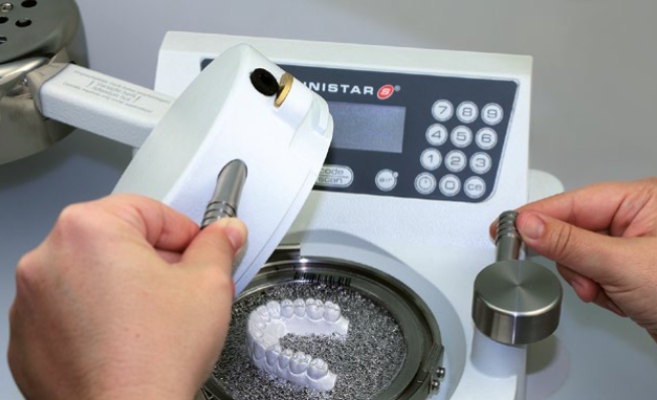

Once the heating time is over, place the pressure chamber over the model and close the locking handle.

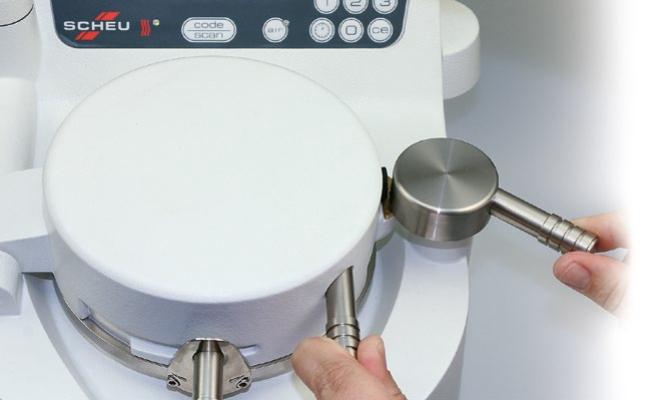

After the cooling time, open the pressure chamber: release the locking handle, push the clamping ring to the left and open the chamber.

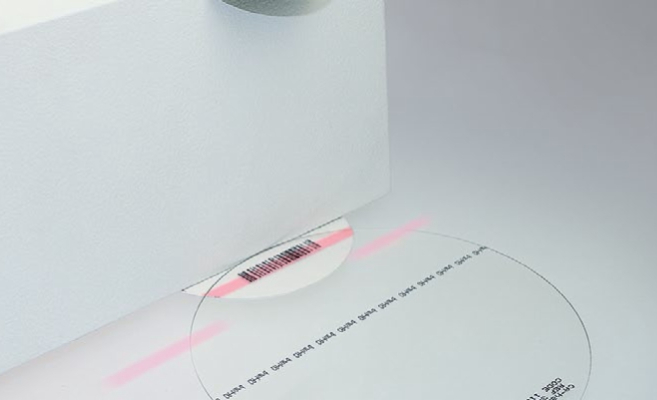

Programming by barcode scanning
Temperature and heating and cooling times are programmed directly from the barcode printed on every Scheu Dental foil. Programming errors or choosing the wrong material can be avoided completely, and all working parameters are shown on the screen.
The function does not restrict the use of other foils: foil manufacturers provide the recommended codes for Scheu Dental equipment.
Scheu Dental · Versatile, 6 bar

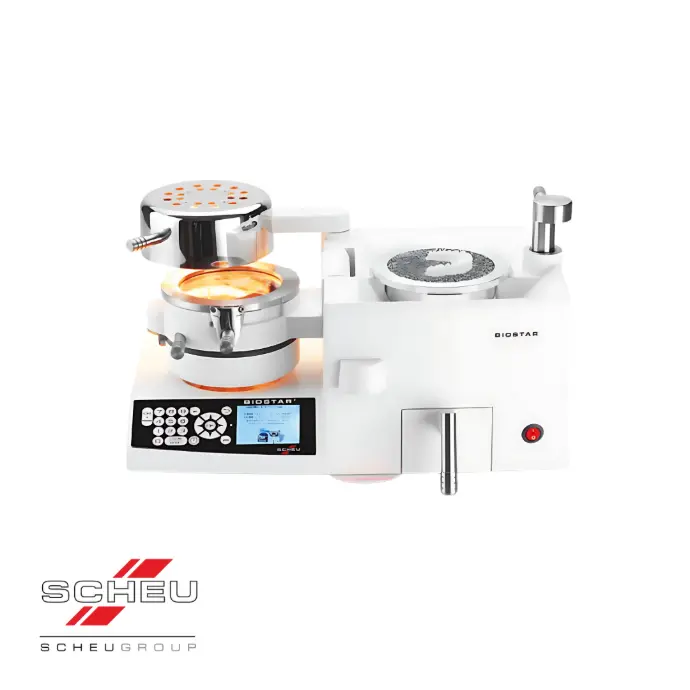

Biostar
A versatile pressure unit, for all dental and orthodontic applications.

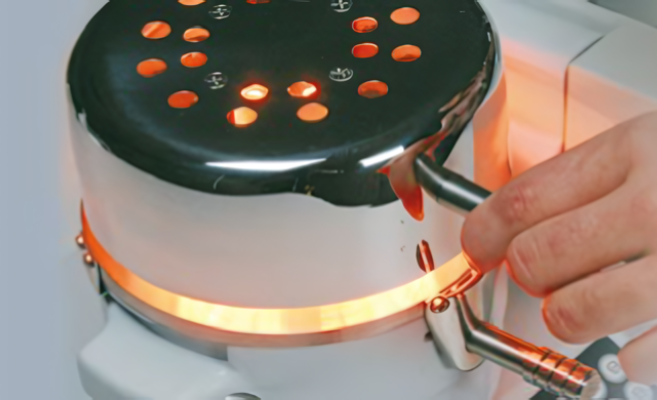

The thermostatically controlled infrared heater reaches working temperature in one second and heats the side of the material facing the model, with a surface temperature up to 60°C higher. Together with the 6 bar working pressure, it ensures precise thermoforming, from the thinnest materials up to 5 mm thick.
- Scanning function with instant programming
- 3.2" colour LCD screen (320 × 240 px), with acoustic and visual instructions
- Database with information on the scanned material, indications and illustrated process steps
- Large cup for embedding models mounted in an articulator
- USB port for software updates
What makes Biostar different

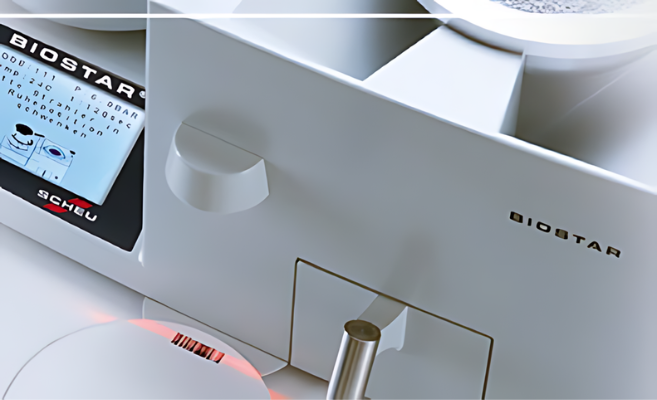

Barcode scanning
Reads the barcode on the foil and programs the parameters automatically.
Heating in 1 second
Thermostatically controlled short-wave infrared heater.

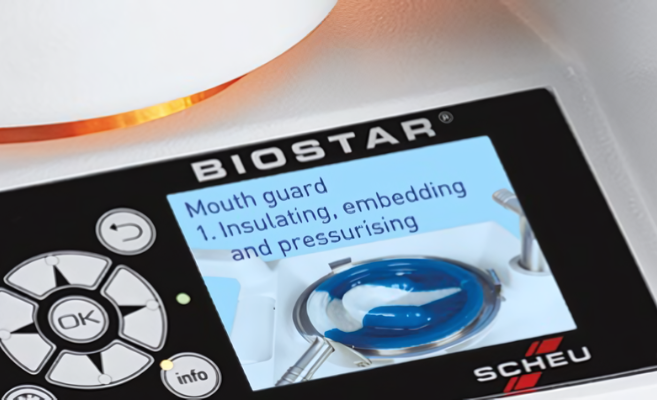

Colour LCD screen
Large display, with illustrated tips for every step.

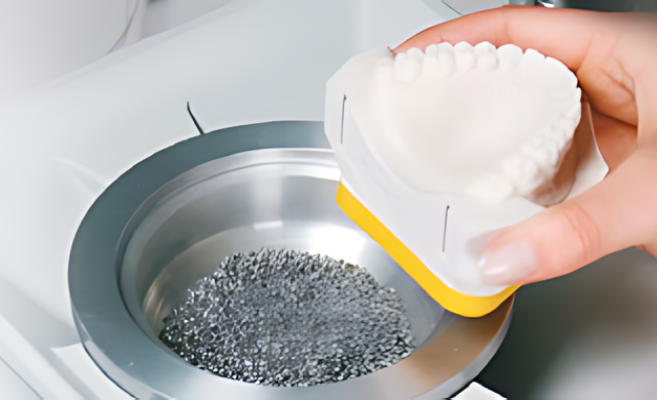

Large chamber
Can embed models mounted in an articulator; the ergonomic container makes it easy to remove and store pellets.

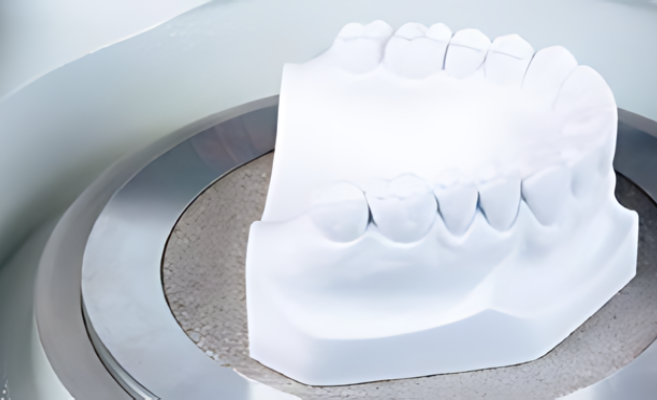

High-pressure chamber
Allows bimaxillary positioners to be made.
Scheu Dental · Aligner production

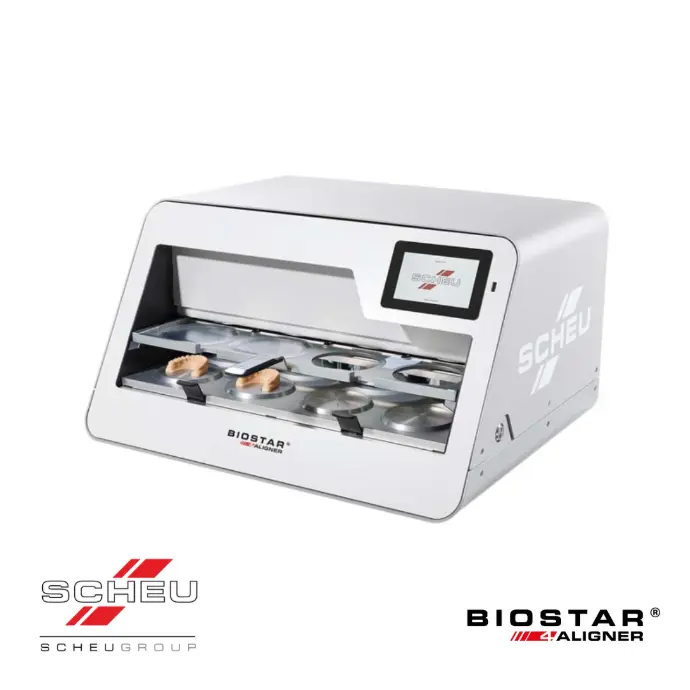

Biostar® 4-Aligner
Multiple thermoforming: up to 4 aligners at once.
Each aligner is formed in its own pressure chamber at 4 bar, for a capacity of up to 120 aligners per hour. Accepts SCHEU-DENTAL round foils 120–125 mm in diameter and 499 × 114 mm rectangular strips, available exclusively from SCHEU-DENTAL, for quadruple use.
- 4 separate heaters, with patented thermostatic control
- 4 separate pressure chambers, with 4 bar working pressure
- Reaches working temperature in 1 second
- Colour touchscreen, with intuitive operation and easy software updates
- No warm-up needed in continuous operation, thanks to the ventilation system
- 3-year warranty
