Sony Medical-D · doctorseyes · Intraoral photography
Consistent clinical photos, for every patient
The Sony Medical-D camera, with preset modes for intraoral and facial images, plus doctorseyes mirrors and contrasters: the complete kit for documenting orthodontic cases.
- ✓ Camera with 2-year warranty, 32 GB card and spacer included
Clinical photography camera
Sony Medical-D
Consistent clinical photos, without adjusting settings manually.
The camera has preset modes for intraoral and facial images: choose the mode and press the shutter. The tilting touchscreen gives you direct access to images and zoom, and WiFi lets you send photos to a computer, laptop or phone.
- Ring flash and macro lens for sharp intraoral images

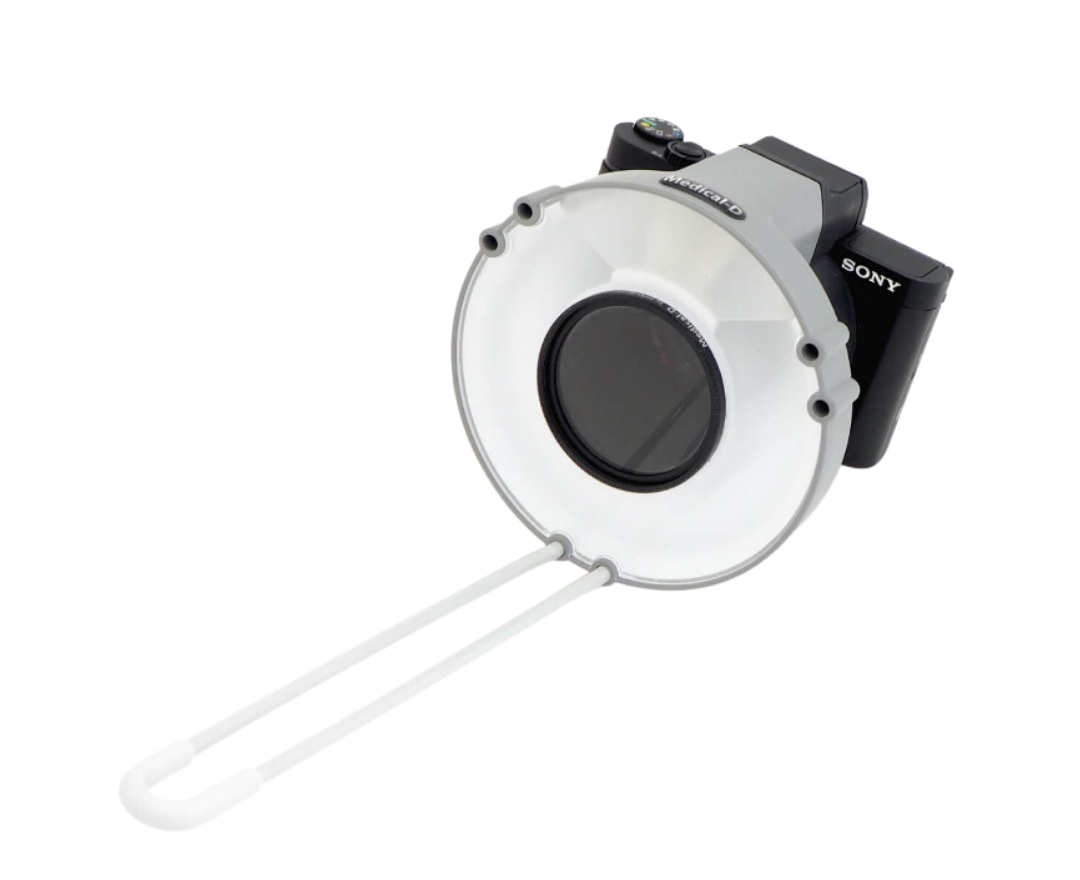

- Detachable spacer, for the same distance with every patient

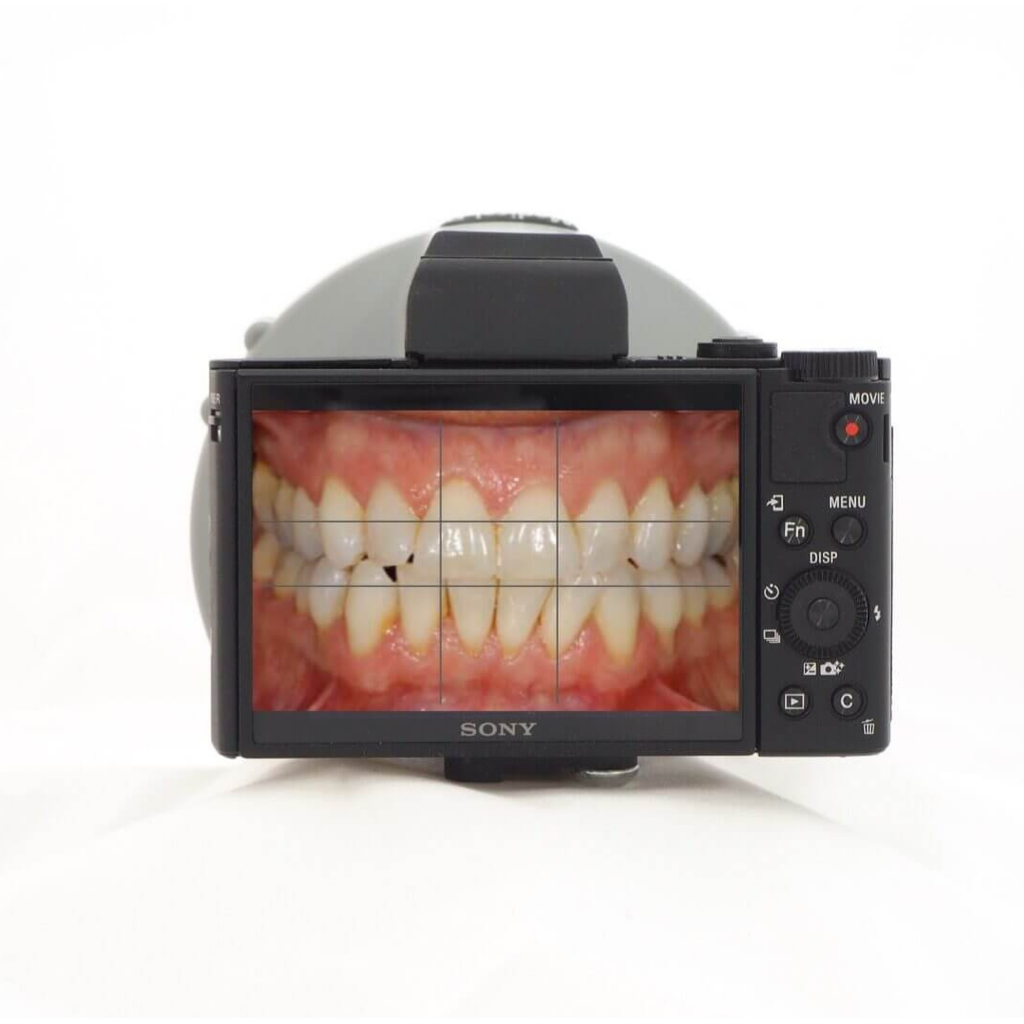

- On-screen grids, for the correct angle in every orthodontic view
- Full HD video of the occlusal relationship or the joint
- Transfer by card, cable or WiFi
One button for each type of photo
The preset modes set zoom, colour, aperture and shutter speed.
D mode, intraoral
Automatic 100 mm zoom, with colour correction and exposure optimised for images of the oral cavity.
SMILE mode, facial
Automatic 70 mm zoom, for frontal and profile portraits from 1–1.5 m. No spacer needed.
No reflections
With the optional cross-polarisation filter, D mode gives you photos with no reflections on the enamel.

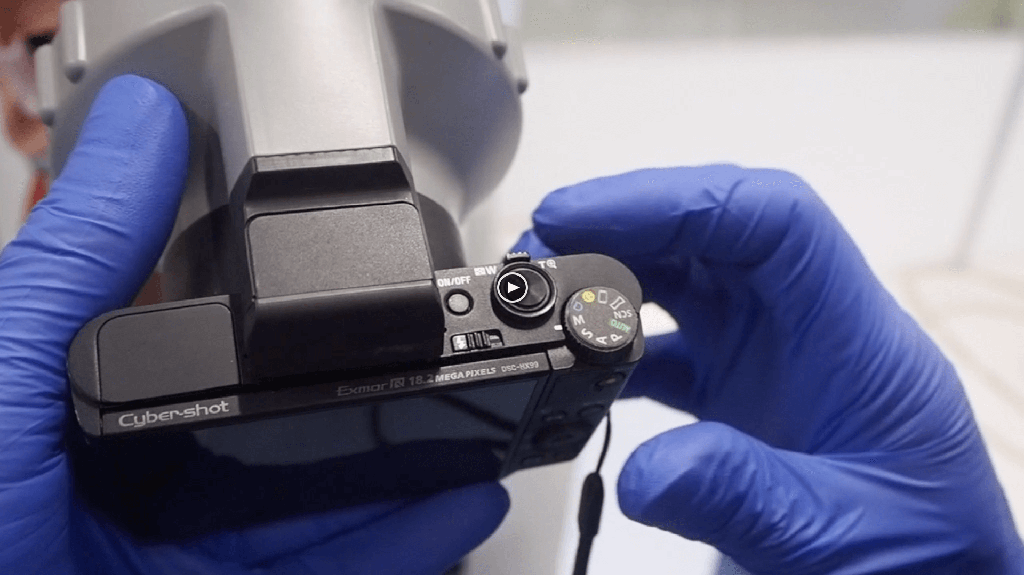

Easy to handle
Only 400 g, with touch focus and automatic flash, easy to use with gloves.

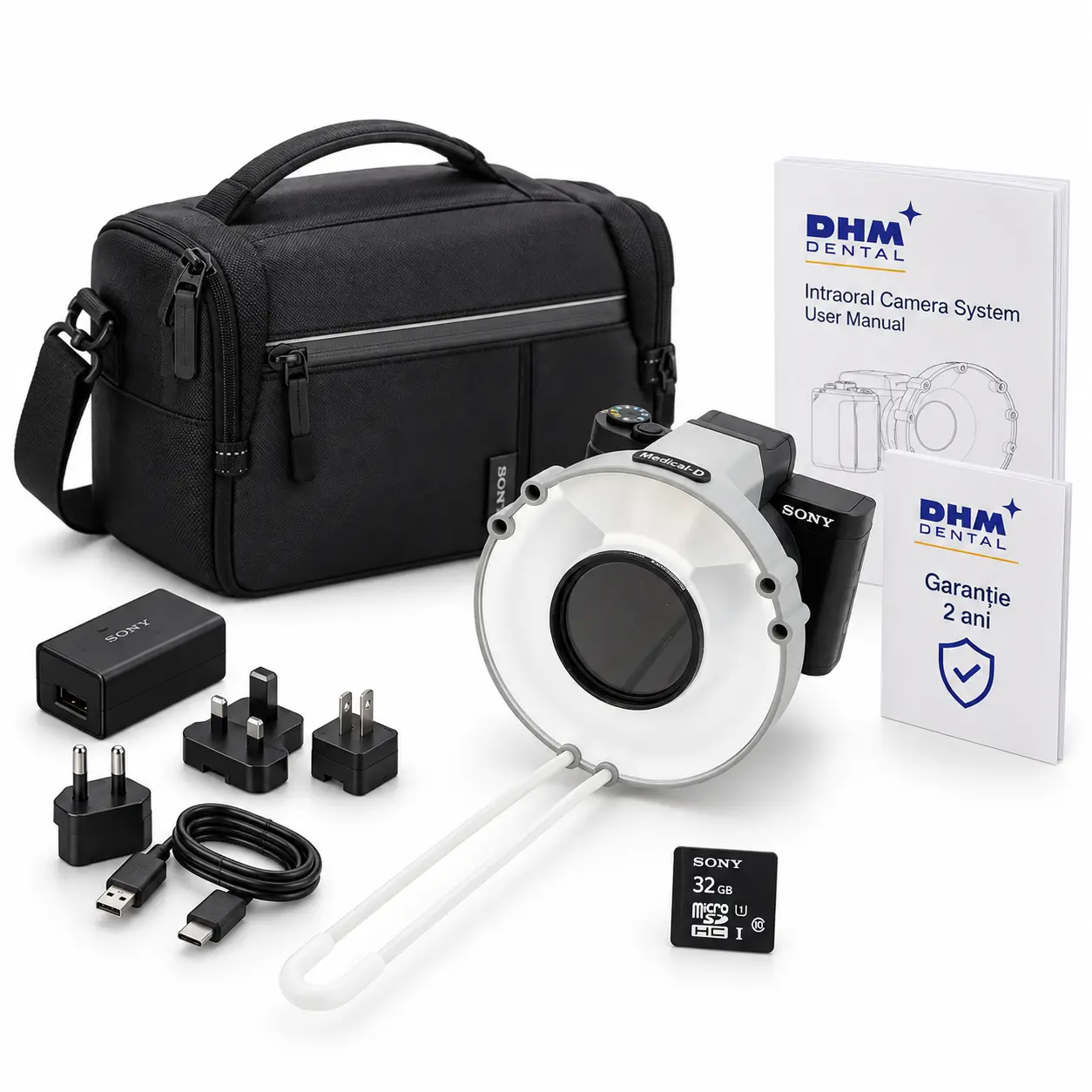

What’s in the box
Everything you need, in one kit
The camera is ready to work from day one.
The Sony Medical-D kit includes everything you need to start documenting cases. Cross-polarisation filters are available separately.
- Sony Medical-D camera, preset
- Detachable spacer
- Charger
- 32 GB micro SD card
- Carrying bag
- User instructions
- 2-year warranty

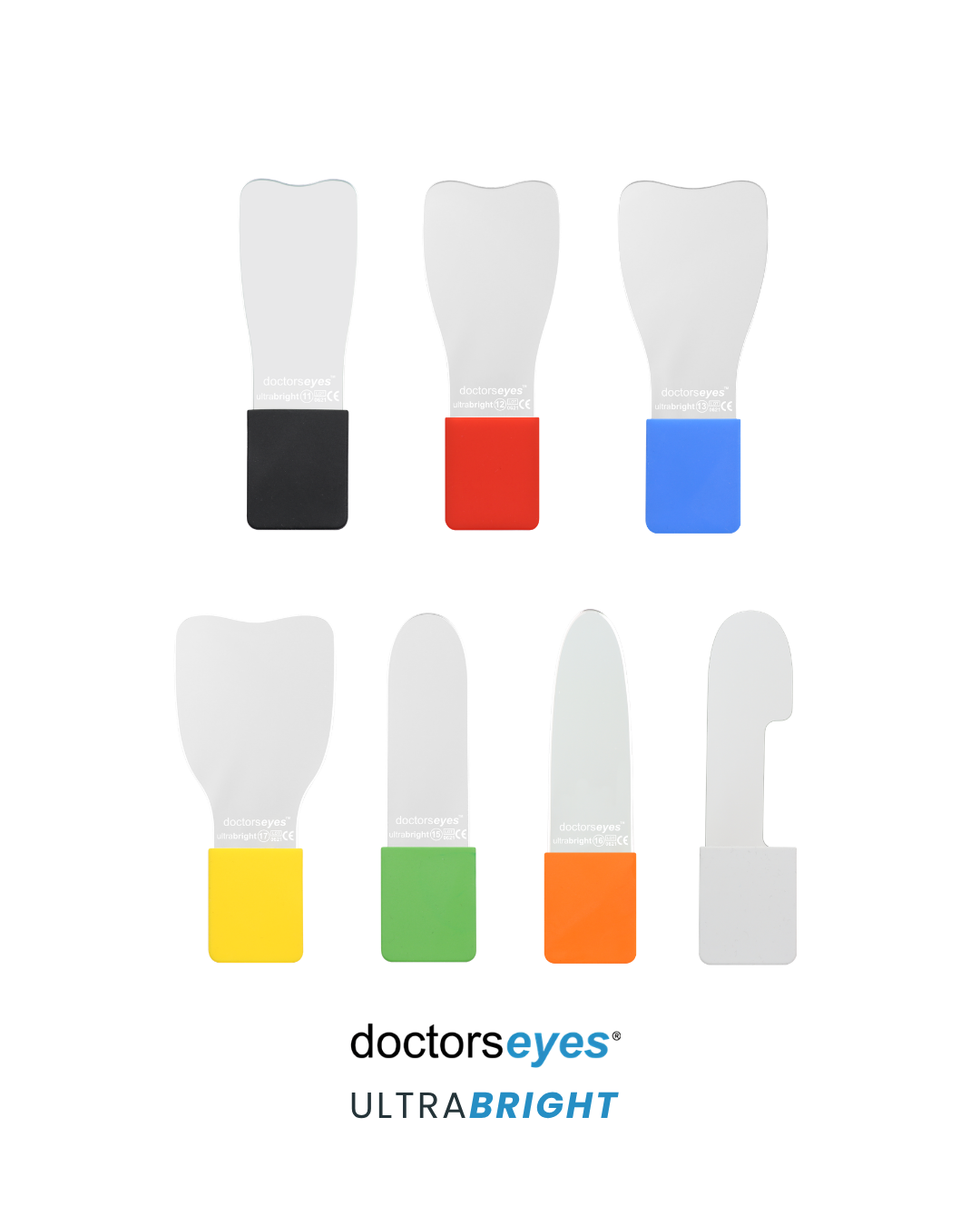

Intraoral photography mirrors
doctorseyes ultrabright mirrors
Close to 100% reflection and colour accuracy.
Rhodium and titanium mirrors reach an average reflectivity of about 75%, and chrome mirrors about 65%. Thanks to the ultrabright front-surface coating, doctorseyes mirrors reach close to 100% reflection.
- Ultrabright front-surface coating
- Smooth glass, resistant to scratches and corrosion
- Detachable silicone handle that protects the mirror surface
- Occlusal, buccal and lingual versions, for children and adults
Which mirror and contraster to choose
The doctorseyes range available from UpOrtho.
| Product | Type | Size | For |
|---|---|---|---|
| Mirror 11 | Occlusal | 55 mm | Children |
| Mirror 12 | Occlusal | 65 mm | Adults |
| Mirror 13 | Occlusal | 70 mm | Adults |
| Mirror 17 | Occlusal | 75 mm | Adults |
| Mirror 15 | Buccal | 40 mm | Adults |
| Mirror 16 | Buccal | 40 mm | Universal |
| Mirror 14 | Lingual | 40 mm | Adults |
| Contraster 30 / 31 / 32 | Lingual | 50 / 55 / 65 mm | Depending on arch width |
| Contraster 35 / 36 / 37 / 38 | Occlusal | 51 / 53 / 60 / 65 mm | Depending on arch width |
doctorseyes contrasters
A black, non-reflective background, for high-contrast photos with no distracting elements.

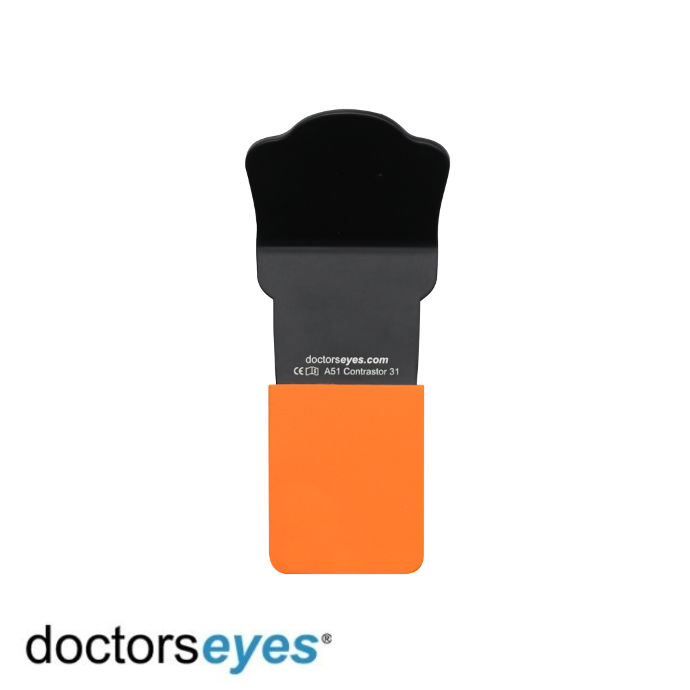

Lingual contraster
Made of 3 mm aluminium with a black non-reflective coating. It is held behind the anterior teeth; the patient can hold it alone, so both your hands stay free.
Effect: frontal view
The dark background brings out the details of the anterior teeth.

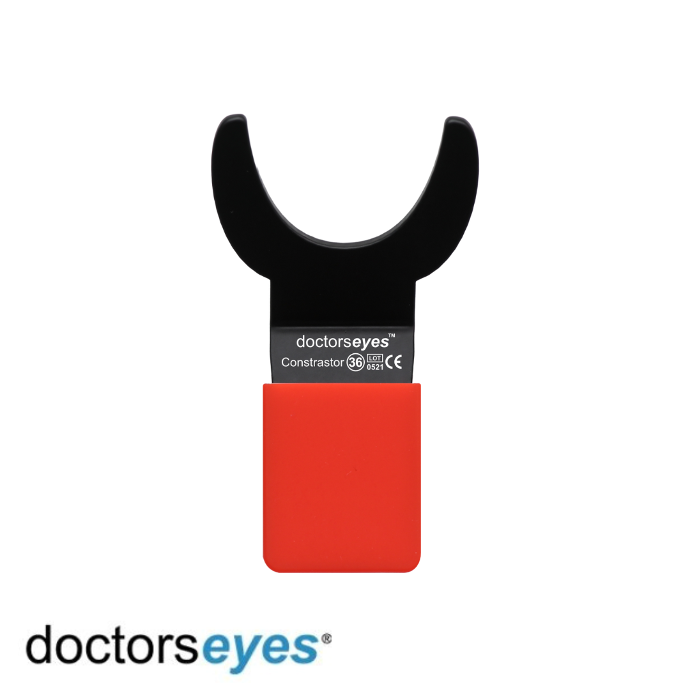

Occlusal contraster
Its curve retracts the lip and blocks background elements; it also works as a cheek retractor for the occlusal mirror view.
Effect: occlusal view
A cleaner occlusal image with better contrast. The autoclavable handle is detachable.
Prices and ordering
The camera, mirrors, contrasters and accessories, ready to order.
Sony Medical-D specifications
Camera
| Model | Sony DSC-HX99 |
| Resolution | 18.2 megapixels |
| Sensor | CMOS |
| Lens | Zeiss, with close-up macro lens |
| Flash | Ring, automatic |
| Screen | 3.0", tilting, touch |
| Video | Full HD |
| Storage | 32 GB micro SD card |
| Connectivity | Built-in WiFi |
Clinical use
- Preset for one-button control
- 2 modes: D (intraoral) and SMILE (facial)
- Detachable spacer
- Touch focus
- Optional cross-polarisation filters, available separately
2-year warranty.
Why order from UpOrtho
Brands
International
Orthodontic products from trusted manufacturers.
Support
Specialist
Dedicated support for the needs of orthodontic professionals.
Want to standardise the photos in your practice?
We will recommend the right combination of camera, mirrors and contrasters for your cases.
